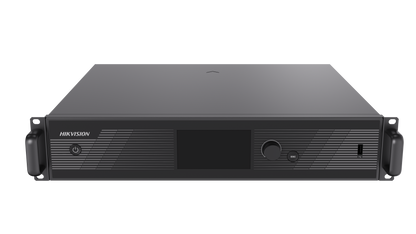

Hikvision LED Controller

Hikvision LED Controller

Rs.0.00 PKR
Rs.0.00 PKR
Shipping calculated at checkout.

Out of stock
Sold out

Overview

24 Ports C Series LED Controller
Equip a full-color 4.5-inch LCD screen with 854 × 480 resolution for real-time device status monitoring and easy maintenance.

Specifications

24 Ports C Series LED Controller

  • Equip a full-color 4.5-inch LCD screen with 854 × 480 resolution for real-time device status monitoring and easy maintenance.
  • Adopt a 2U standard rack-mount industrial-grade chassis design.
  • Provide multiple front-panel buttons for adjusting display brightness, switching input sources, changing scenes, and locking the display.
  • Support 7 video inputs including 1 × DP1.2, 1 × HDMI2.0, 1 × 12G-SDI, and 4 × DVI interfaces.
  • Deliver resolutions up to 4096 × 2160@60Hz via HDMI2.0 and DP1.2, and 1920 × 1080@60Hz via DVI.
  • Offer 2 video loop-out channels: 1 × HDMI and 1 × 12G-SDI, all supporting 4096 × 2160@60Hz.
  • Output images in RGB and YUV444 lossless quality.
  • Support 24 Ethernet port outputs with a total load capacity of up to 15.6 MP. For a single device, the maximum resolution supported is 16384×16384 pixels, and each network port has a maximum load capacity of 0.65 MP.
  • Accept HDMI embedded audio and provide 3.5mm audio input/output interfaces.
  • Allow full-screen or custom scaling, free switching, and splicing of video signals.
  • Support signal source windowing and roaming functions.
  • Support 1 subtitle with customizable color, font, size, scroll speed, and image overlay.
  • Incorporate HDCP 2.2 for high-bandwidth digital content protection.
  • Allow custom EDID configuration.
  • Support dual backup of the power supplies and dual backup of LED controller network ports.
  • Support flexible cabling without rectangular frame restrictions.
  • Support the operation through the client or the LED controller web page.
  • Support configuring background image for display.
  • Support configuring device startup logo.
  • Support display dehumidification functionality.
  • Support remote control operation with an on-screen UI menu.
  • Support adjusting output parameters such as brightness, contrast, and hue.
  • Support pixel-level display calibration to eliminate color differences and enhance display quality.
  • Support changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
  • Support color temperature adjustment modes including standard, warm color, and cold color, with customizable color temperature settings.
  • Support eye protection mode to reduce viewer eye strain.
  • Deliver a 7680Hz high refresh rate with nanosecond response time for smooth video playback.
  • Support monitoring load relationships between the device and LED display.
  • Support locating display abnormalities during operation.
  • Support checking device status, memory, CPU usage, temperature, and network port utilization.
  • Support detecting abnormal cabinet voltage, cabinet temperature, and device temperature.
  • Support connecting to the central control device and IoT device through RS-485 port.
  • Support docking device command and managing device by using the control network port and the protocols such as OTAP.
  • Support using the control network port to connect to the multi-function card to realize environment temperature detection, environment humidity detection, and the cooperation between the human presence sensor and display control.
  • Adapt to frame rates from 25Hz to 120Hz for image capture.
  • Operate via a knob for menu selection, parameter adjustment, and confirmation.
  • Provide 4 × 10G optical ports supporting video control mode and fiber-optic conversion mode.
  • Support HDR10 with compatible receiving cards for enhanced color accuracy and detail.
  • Support 3D display via the built-in 3D interface, transmitter, and 3D glasses.
  • Provide a standard Genlock interface with loop-through support for synchronization signals.
  • Support 1 × USB 2.0 port.
