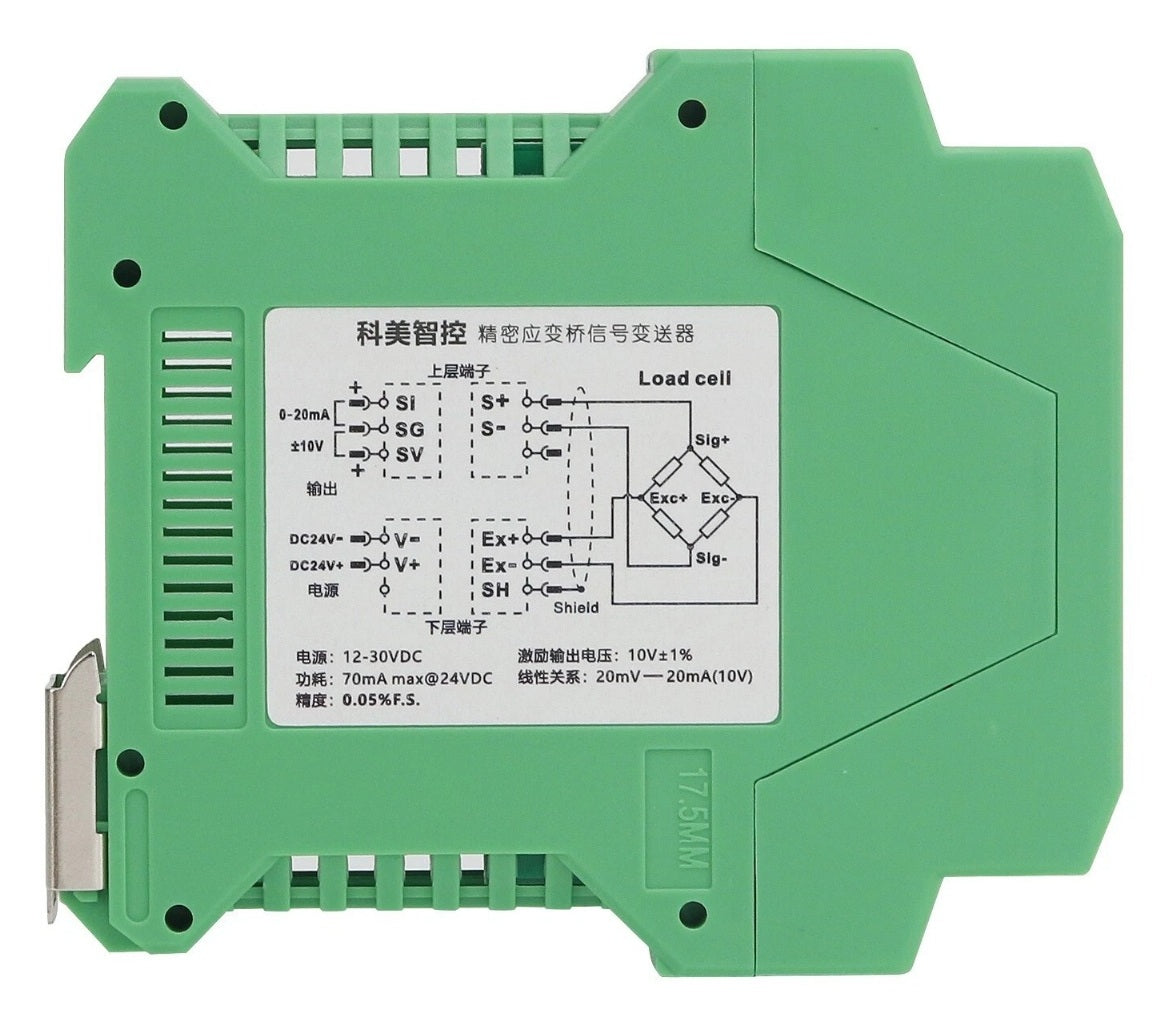

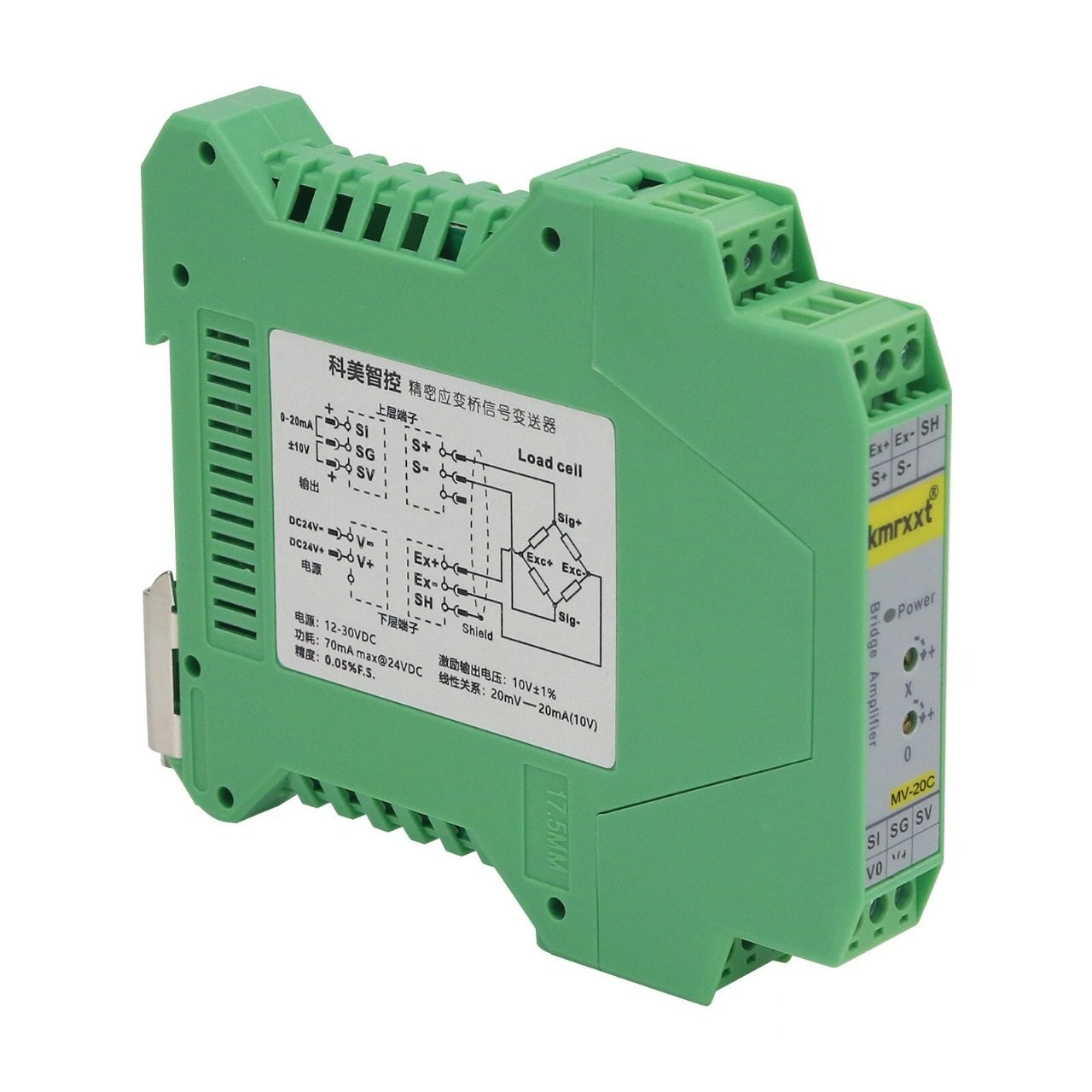

Precise Isolated Bridge Amplifier (MV-20C)

The product supports hardware zeroing and amplitude adjustment. It supports bipolar applications, such as test applications where tension and pressure are present at the same time, and where a ± 10V signal is generated

- MV-20C precision strain bridge signal transmitter
- Suitable for tension, pressure, weighing and other force sensor applications
- Industrial grade, with an accuracy of 0.01%
- Low noise and high precision. The overall maximum non-linearity error is better than 0.01% F.S.
- Can be mounted to a standard 35mm DIN rail. 9-30V wide voltage power supply
- The power supply is electrically isolated from the signal, and the isolation voltage is 1.5KV
- All interfaces with surge protection
- Low-profile, modular design and detachable terminals
- Precision and low-temperature drifting. 5V excitation power supply output
- Thanks to DIP switches, you can choose 3KHz and 100Hz low-pass filtering. Excellent filtering and anti-interference ability
- Adjustable standard output signals: 0/4-20mA, 0-10V and ±10V bipolar signals
- Supports 1mV/V~4mV/V sensitivity sensors, and supports for tension/pressure bipolar measurement occasions
- Application scenarios: It has been widely used in various industrial control occasions

.
