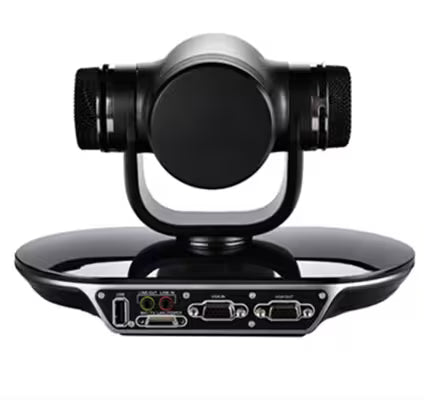

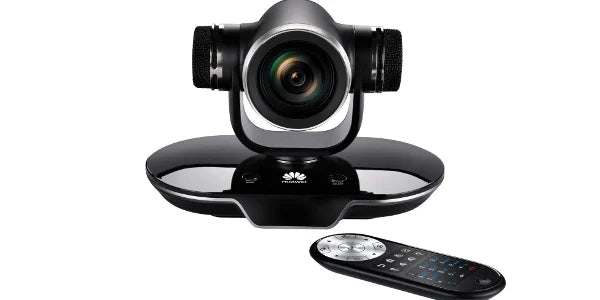

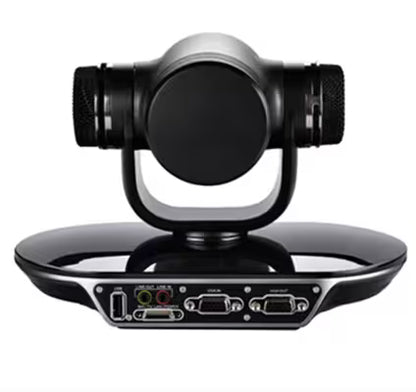

TE 30 Video Conferencing Endpoint

TE 30 Video Conferencing Endpoint

Rs.0.00 PKR
Rs.0.00 PKR
Shipping calculated at checkout.

Low stock! Only 2 left

Overview

HUAWEI TE30 is an all-in-one HD videoconferencing system with unique voice dialing and Wi-Fi access, and enables more people to join a multipoint conference. Its compact appearance and simplified installation make it an ideal choice for small- and mediumsized conference rooms.

Specifications

Huawei TE30 — All-in-One HD Videoconferencing Endpoint | Specifications

01Video & Display

People video resolution 1080p @ 30fps from 512 Kbps (optional) · 720p @ 50/60fps from 512 Kbps (optional) · 720p @ 25/30fps from 384 Kbps · 4SIF/4CIF from 128 Kbps · SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbps
Display modes Adaptation and conversion between 16:9 and 4:3
Screen layout Picture-in-picture (1/16 size, adjustable position); split output supporting bi-screen and tri-screen display
Video coding H.264 High Profile, plus Huawei Video Motion Enhancement (VME) for high-quality dual-1080p video at low bandwidth
Error resilience Scalable Video Coding (SVC) and Super Error Concealment (SEC) 3.0 — smooth performance with up to 20% packet loss

02Network & Protocols

Standards & protocols TCP/IP FTP FTPS DHCP SNMP Telnet SSH HTTP HTTPS PPPoE RTP RTCP SNTP
Connectivity Built-in Wi-Fi · IPv4 and IPv6 support
Mounting Tabletop (on top of a display), wall-mounted, ceiling-mounted, or upside-down mounting

03Special Features

Voice dialing English and Chinese — join a conference by saying its name
Setup Plug-and-play installation from a USB disk
Integration Microsoft Lync 2010 and OCS 2007 R2 · hybrid IMS network support · API for third-party integration
Calling SiteCall (HD dual-stream) · site and conference locking
Directory LDAP / network address book

04Digital Captioning

Caption elements Caption banner, body text, and information bar
Display Rolling display mode for speech drafts · 64 selectable colors · adjustable size and transparency
Input & output Text input via remote control · external character generator support · site name display with position shift

05Security

Signaling & media encryption H.235 signaling and media stream encryption · AES with dual-stream encryption · TLS and SRTP for SIP signaling and media
Access control Conference access password · conference control password · administrator password
Remote access SSH / HTTPS

06Firewall Traversal

Standards H.460.18 H.460.19
NAT Static NAT, SNP

07Networking Options

Built-in MCU Built-in MCU-based network · built-in MCU networking with RSE6500
Cloud interconnect Videxio interconnection network
ACS Networking with the Auto Configuration Server (ACS)

08Management

Web interface Initiate calls, control conferences, manage address books, and modify system configuration from a browser
Concurrent users Up to 10 concurrent users (including API users); last operation takes effect when multiple users act simultaneously
Remote admin Administrators can control the endpoint remotely via the web interface

Specifications reflect publicly available Huawei TE30 documentation and may vary slightly by firmware/software release (e.g. V500R002C00 vs. V600R019C00). Specifications are subject to change without notice and are provided for reference only — confirm current details with Huawei or an authorized reseller before purchase or deployment.
